12 Station Restroom Trailer - Pro Series

12 Station Pro Series Restroom Trailer Walk-through

Description

The 12 station PRO series restroom trailer is a well-rounded restroom trailer that is well-equipped to handle large special events, long term construction rentals, or disaster relief work.  We recommend this restroom trailer for events with 600 guests or less.

Standard Features:

Chassis:
  • Steel frame
  • 2-5/16" coupler with 7,000 lb toungue jack
  • Three 7,000 lb axles w/ electric brakes
  • 16" radial tire with 8 hole steel wheels
  • 7,000 lb front stabilizing drop jacks
  • 3,000 lb rear stabilizing swivel jacks
Exterior:
  • 26" entry doors, with frosted glass windows
  • 36" mechanical room door
  • 24" self leveling slide out stairs with platform and railings
  • Diamond plate trim

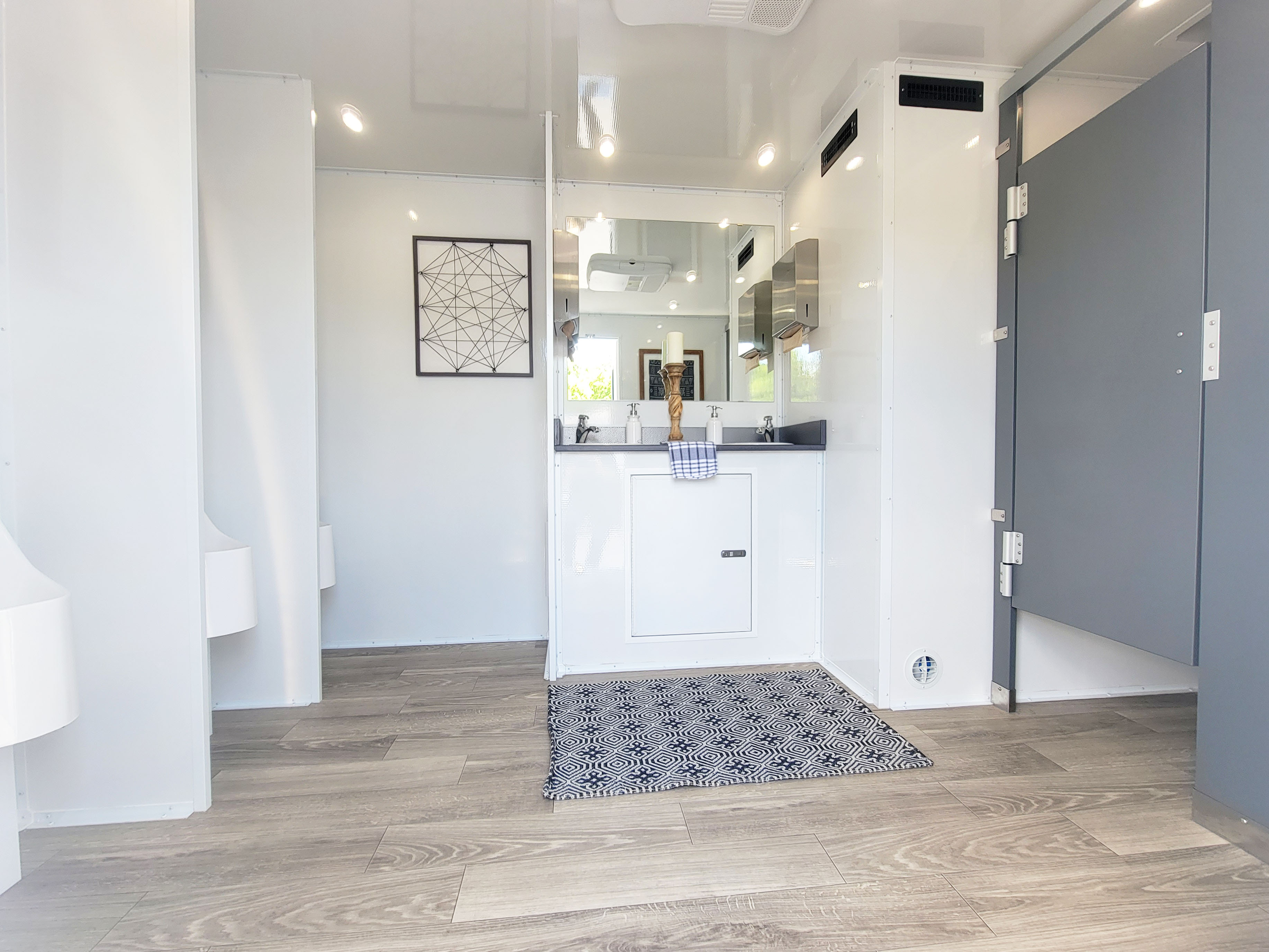

Interior:
  • One piece vinyl flooring - Dove Tail
  • Seamless gel-coated fiberglass walls, ceiling, and subfloor
  • Aluminum trim - White
  • Oversized mirrors
  • Custom HDPE vanities
  • Travel locks on all doors and vanities
  • 1" thick HDPE stall doors and dividers
  • Toilet paper dispensers (double roll)
  • Paper towel dispensers - stainless
Plumbing:
  • Stainless steel sinks
  • Delta metered faucets
  • Dometic 310 white china toilets with foot flush
  • Urinal, waterless, white
  • City water fill, 3/4" garden hose connection
  • All toilets and sinks individually valved
  • 1000 (aprox) gallon 1/2" Co-Poly waste tank
  • Spray bar waste tank clean out
  • Dump valve 3" with quick connect
Electrical & HVAC:
  • 13,500 BTU A/C (x2) with decorative airbox
  • 5,000 BTU heat strip (x2)
  • Smart touch digital thermostat (x2)
  • Locking thermostat cover (x2)
  • Full size deep cycle battery with case & battery disconnect
  • LED exterior entrance lights
  • LED interior lighting package
  • 15’- 12 gauge power cord with 20 amp plug (2)
  • Tech edge waste tank monitoring system
Additional options available:
  • 200 gallon fresh water package
  • Three season package
  • Winter package
  • Bluetooth AM / FM stereo
  • Mobile monitoring
  • Aluminum wheels

Specifications

No. of stations Womens - 6, Mens - 6
Box Size 29' x 101"
Weight 12,800 lbs (will vary based on features)
Weight (Axle) Three 7,000 lb
Length w/ tongue 35'
Width w/ Stairs 12'4"
Height w/ AC 11'10"
Fresh Water Tank 200 Gallons (option)
Waste Tank 1000 Gallons
Power Requirements 2 dedicated 120 Volt-20 amp circuit (will vary based on features)
No. of AC Units 2
