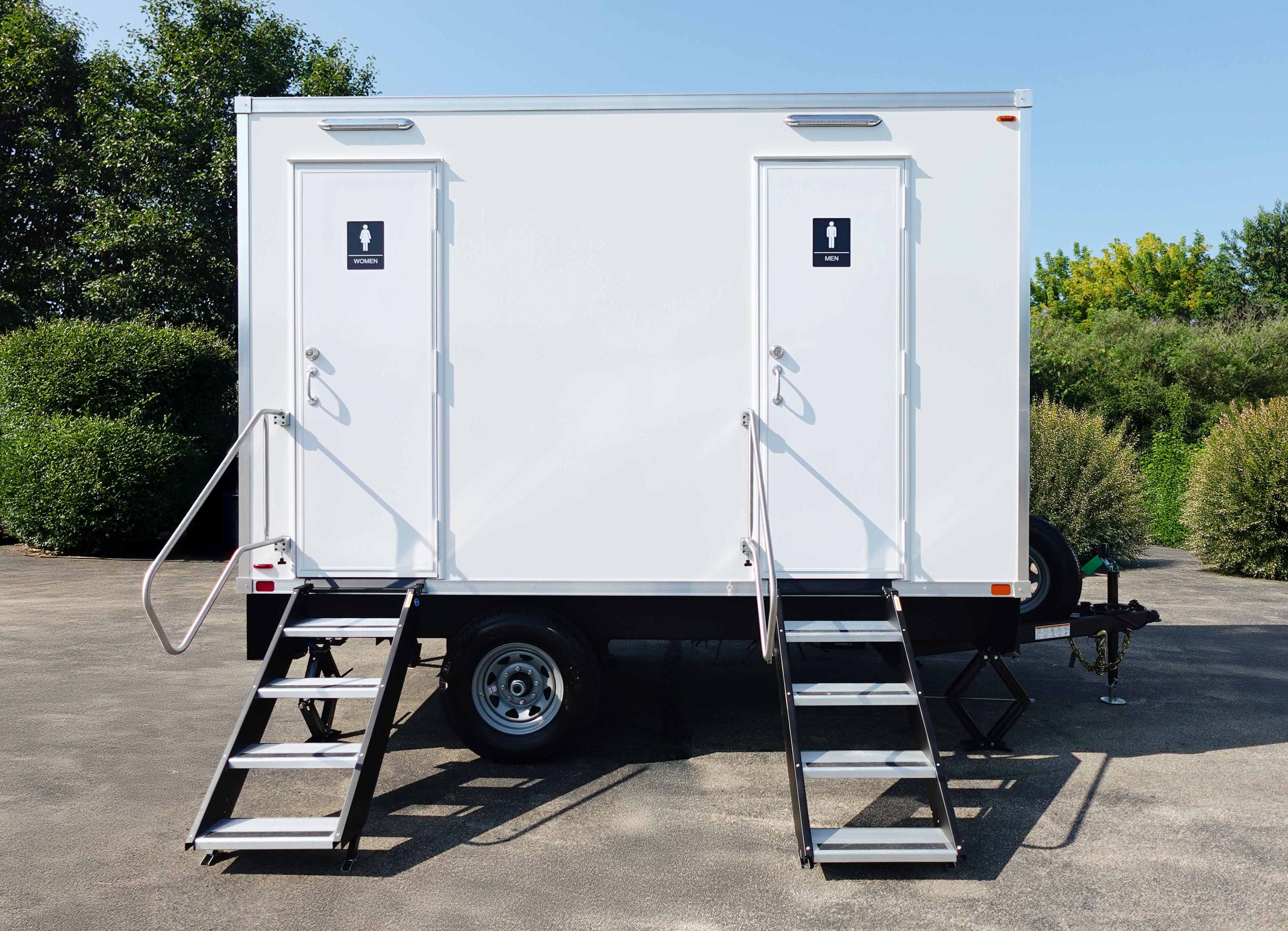

4 Station Community Floorplan Restroom Trailer - ECO Series

4 Station ECO Series Restroom Trailer Walk-Through

Description

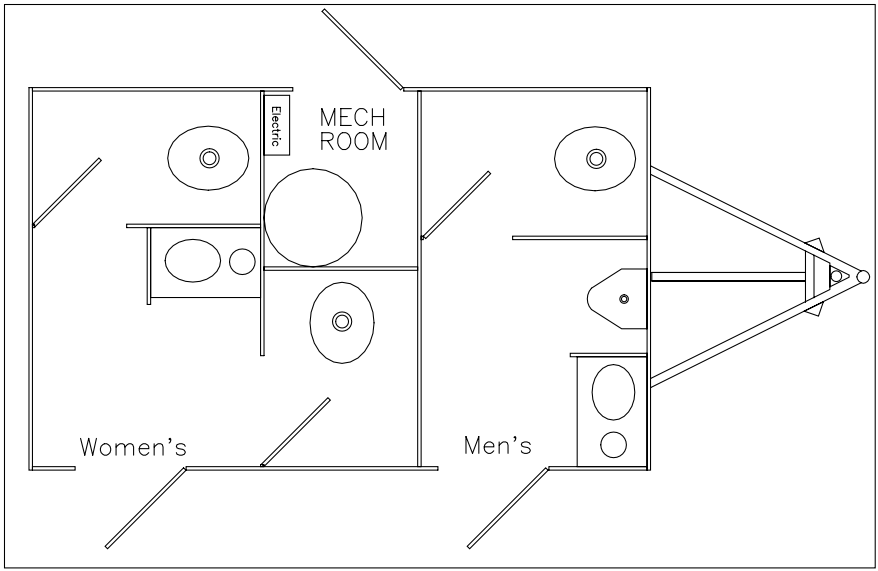

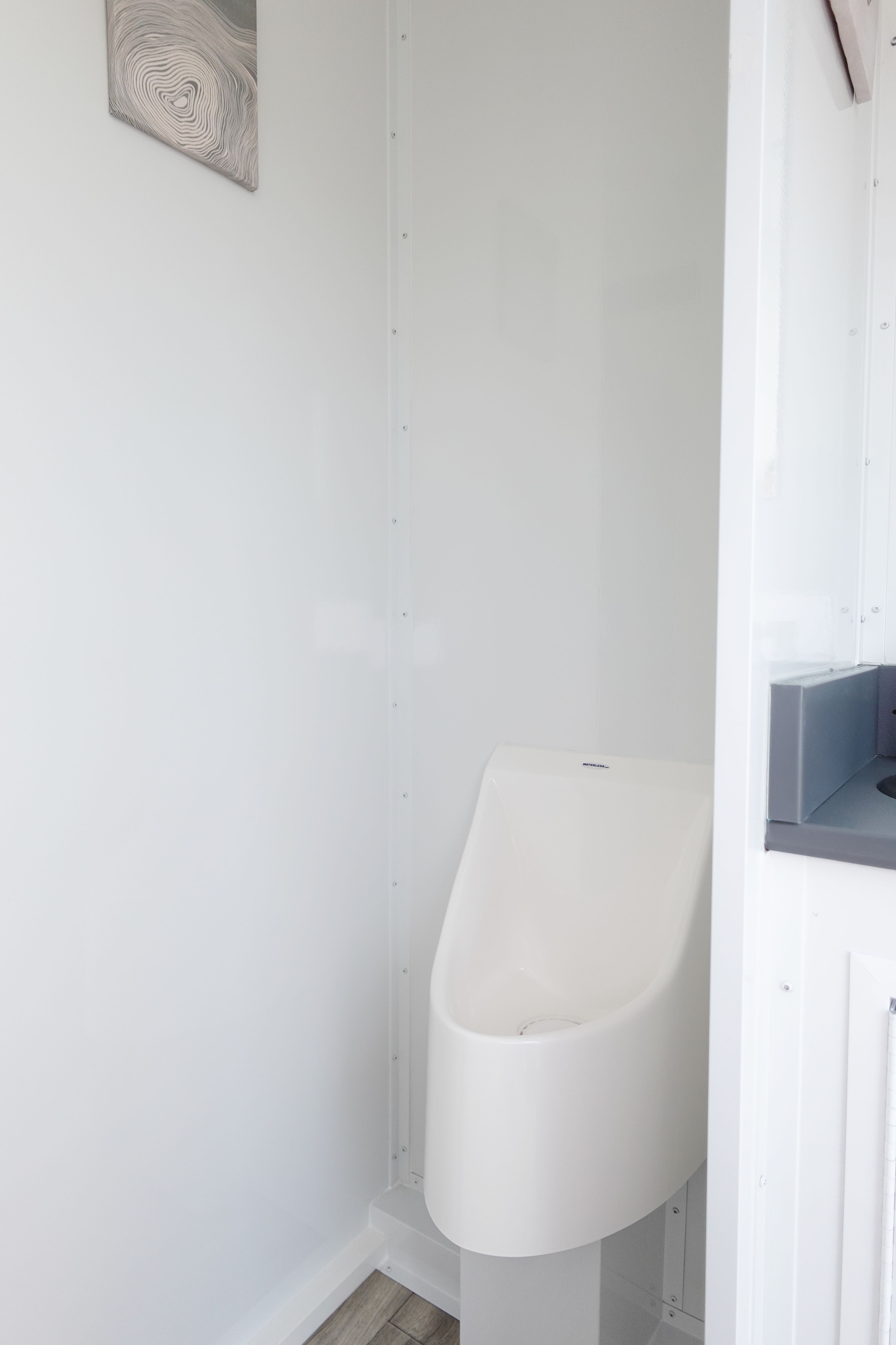

The 4 Station ECO Series Community floor plan was designed to allow 4 users inside at the same time. More availability of stalls equals less people waiting in line.  A "community" style floor plan is a shared washroom in both the men's and women's rooms, with private stalls and slide-lock doors. The men's room has 1 private flushable toilet and 1 waterless urinal. The women's room has 2 private toilet stalls. Each room has a sink and oversized lockable vanity for a large garbage can.

Standard Features:

Chassis:
  • Steel frame
  • 2-5/16" coupler with tongue jack
  • 7,000 lb. axle with electric brakes, ex lube
  • 16" radial tires and 8 hole steel wheels
Exterior Features:
  • 24" entrance doors
  • 24" mechanical room door
  • 24" fold out stairs with railing
Interior Features:
  • One piece vinyl flooring
  • Seamless gel-coated fiberglass interior / exterior walls
  • One piece gel-coated fiberglass ceiling / roof
  • White aluminum trim
  • Mirror
  • HDPE vanities
  • Toilet paper dispenser (double roll)
  • Paper towel dispenser - stainless
Electrical:
  • 13,500 BTU A/C with insulated ducts and registers
  • 5,000 BTU heat strip with insulated ducts and registers
  • Thermostat
  • Converter with charge protection - 30 AMP
  • LED DOT safety lights
  • LED interior lighting
  • LED Porch lights
  • 15’- 12 gauge power cord with 20 amp plug
  • Individually fused 4 gang switch panel
Plumbing:
  • Stainless steel sinks
  • Delta metered faucets

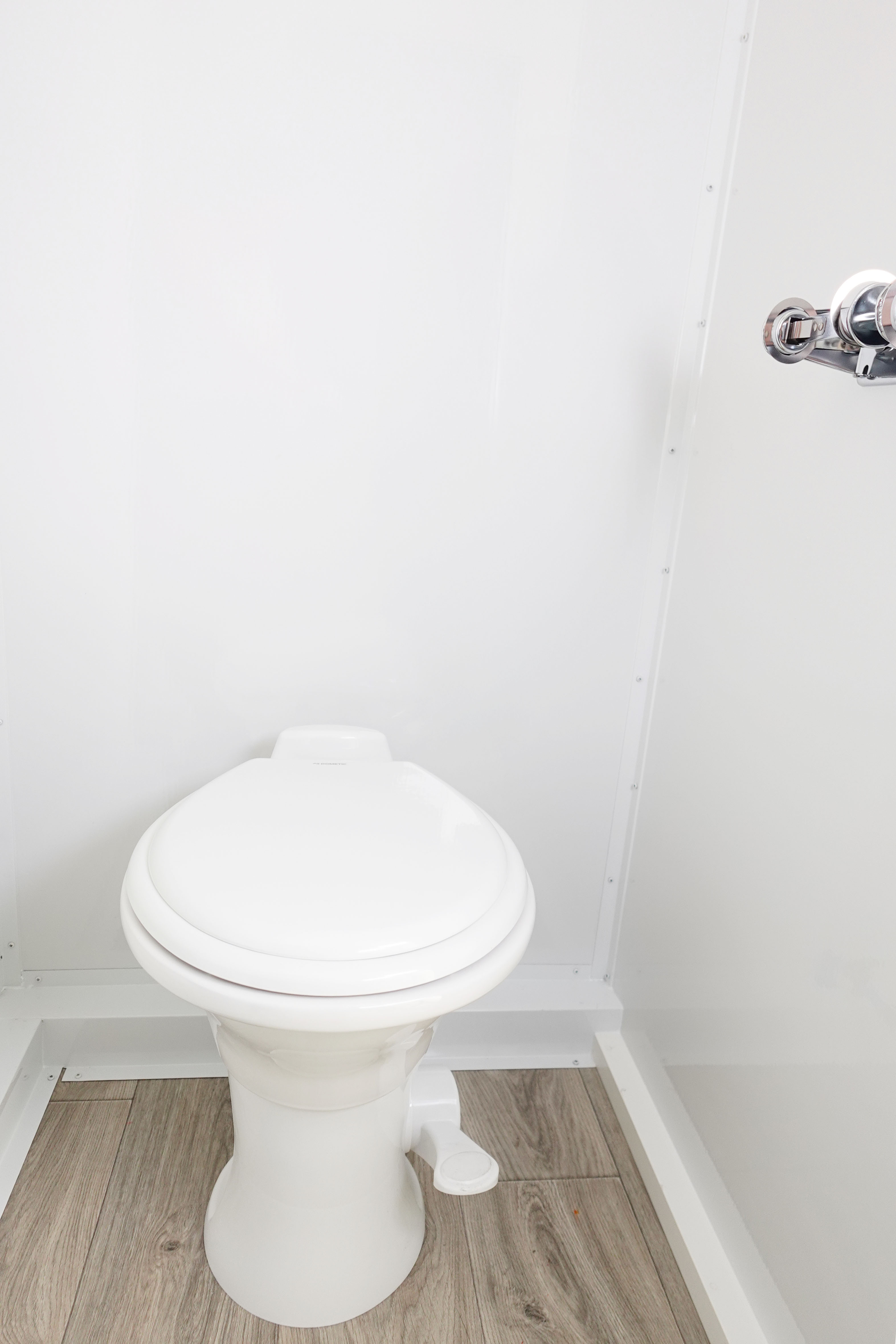

  • Dometic 310 white china toilets with foot flush
  • City water connection, 3/4" garden hose connection
  • Water lines inside of the trailer are weather protected
  • All toilets and sinks are individually valved
  • 350 Gallon 1/2" Co-Poly waste tank
  • 3" dump valve with quick connect
Additional Options Available:
  • 105 gallon fresh water package, fresh water fill valve included
  • Winter Lite package
  • Three season package
  • Bluetooth AM / FM stereo
  • Mobile monitoring system
  • Aluminum wheels
  • Spare Tire mount
  • Generator mount


Specifications

No. of stations Womens -2, Mens -2
Box Size 12'3" x 91"
Weight 4,640 lbs (will vary based on features)
Weight (Axle) Single 7,000 lb.
Length w/ tongue 16'3"
Width w/ stairs 11'
Height w/ AC 11'7"
Fresh Water Tank 105 Gallons (option)
Waste Tank 350 Gallons
Power Requirements One dedicated 120 Volt-20 amp circuit (will vary based on features)
No. of AC Units 1
