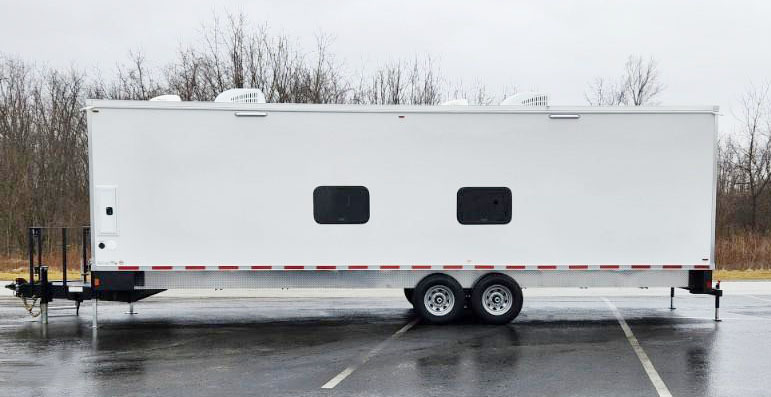

16 Person Bunk House Trailer

Description

The 16 Person Bunkhouse trailer is a great temporary housing option with numerous industry applications. This 16 bed trailer is able to house 16 together or be converted into a split  8 and 8 trailer with a lockable divider. Each bed or bunk has a 32"wide x 76" long x 5" thick mattress. Each bunk is equipped with an outlet, USB port and LED reading light. Each trailer is equipped with 2-13,500 BTU AC units, Exterior DOT Lighting and LED Entrance Lighting for Stairs.  This trailer has 2 separate entrances, front and rear of the trailer, along with 2 egress emergency break out windows.


Standard Features:

Chassis:
  • Steel frame I-Beam Chassis
  • 7k Weld On tongue jack - drop leg
  • 7k Weld on Stabilizer jack - drop leg (front of trailer)
  • 5k Stablizer Jack swivel (rear of trailer)
  • 7,000 lb. axles with electric brakes, ex lube
  • 16" radial tires and 8 hole steel wheels
Exterior Features:
  • 24" entrance doors
  • 24" fold out stairs with railing
  • Emergency Egress Windows
Interior Features:
  • One piece vinyl flooring
  • Seamless gel-coated fiberglass interior / exterior walls
  • One piece gel-coated fiberglass ceiling / roof
  • White aluminum trim
  • Locking Pocket door to separate rooms
  • 32' wide x 76" long x 5" thick mattress foam core, Antibacterial Vinyl Coating
  • 60" anodized Ladder for top bunk
  • Outlets (1 for each bunk)
  • USB port ( 1 for each bunk)
  • LED light with switch (one for each bunk)
Electrical:
  • 13,500 BTU A/C with insulated ducts and registers
  • 5,000 BTU heat strip with insulated ducts and registers
  • Smart Touch Thermostat
  • Locking Thermostat Covers
  • 7 Pin Plug, breakaway protection
  • Converter with charge protection - 30 AMP
  • Full Size Deep Cycle Battery Group 24 with case
  • LED DOT safety lights
  • LED interior lighting
  • LED Porch lights
  • Individually fused LED 6 gang switch panel
 Additional Options Available:
  • Winter Heat Package
  • Personal lockable lockers
  • HEPA Air Filter System
  • Bluetooth AM / FM stereo
  • Mobile monitoring

Specifications

No. of Stations 16 total beds community or convertible  8 and 8 Split
Box Size 29' x 101"
Weight 12,000 lbs based on features
Weight Axle Two- 7,000 lbs
Length with tongue 35'
Height w/AC 12'4"
Power Requirements 4 dedicated 120 volt-20 amp circuit (based on features)
No. of AC units 2'
